Potheads & Stress Cone Leads – Style 1

This style pothead has jumper cables welded (spliced) to the cable phases inside the pothead. The stress cones are built inside the pothead. The jumper cable phase leads are extended out of the pothead to the length requested by the customer. Information to identify the mine plus cable footage is molded into the pothead to help the customer. Used for 8KV and 5KV applications.

styleone01
styleone04

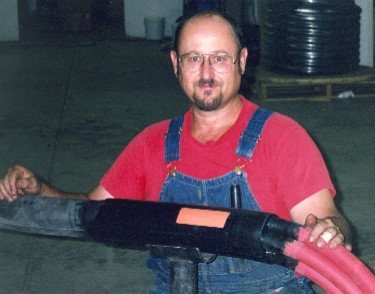

This pothead has just been built. It is being inspected to make sure it meets all of our quality control requirements.

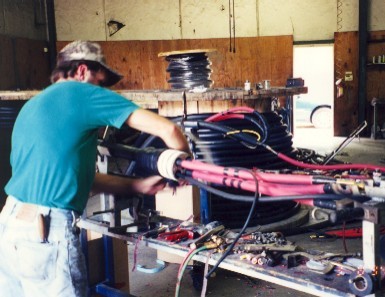

The jumper cable has been welded and stress cones have been formed. The pothead is being built.

styleone02
styleone03

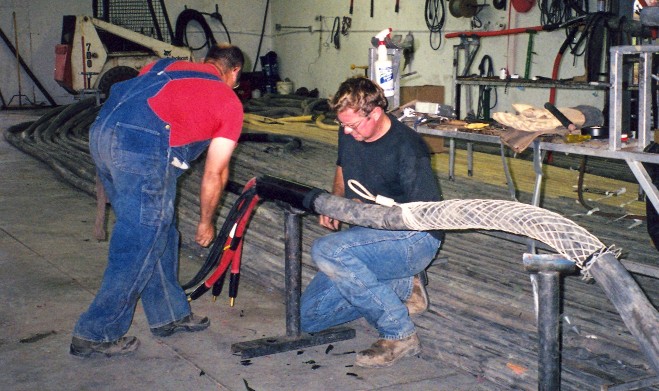

On the left, the pothead termination has been finished. Also, a kellems grip has been installed. It will be permanently vulcanized. Then the termination end will be complete per the customer’s requirements.
